【小型uv固化機價格】常規節能小型led固化機SK-LED-200

產品訂購

品牌：SunKun(三昆)

型號：SK-LED-200

訂購：不限數量

價格：面議

⒈訂購熱線：13823369867(李先生) 在線QQ咨詢

1753480168

⒉業務咨詢：13913507139(黃永貴) 在線QQ咨詢

2851085006

⒈市場部：13510246266(黃總經理) 在線QQ咨詢

289604232

產品介紹

注意：所有小型uv固化機價格均可跟據客戶要求非標訂制,，歡迎來電咨詢！

技術參數

1,、LED光源:1組(進口燈珠)
2,、LED燈照射面尺寸:200*24mm
3、UV波段:365nm

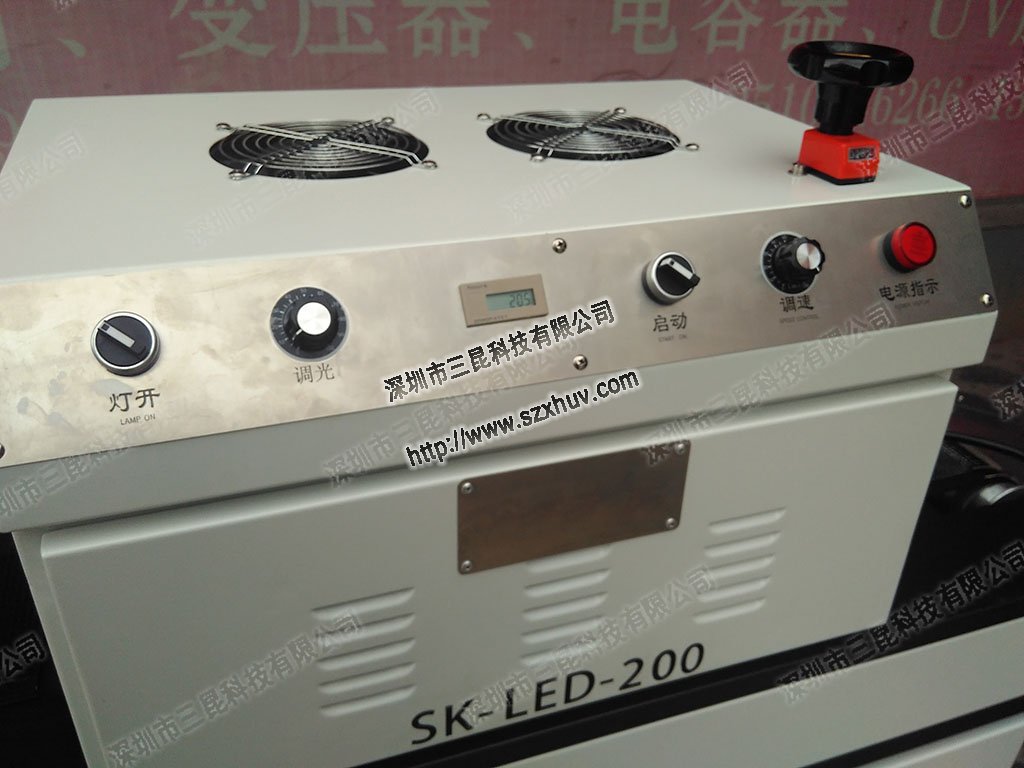

4,、接觸式按鈕控制
5,、LED燈組散熱采用水冷系統
6、LED燈組高低手輪調節
7,、輸送材料:特氟龍網帶
8,、輸送寬度:200mm
9,、輸送速度:0~5m/min
10、入口高度:50mm
11,、電源:220Vac50HZ

Technical Parameters:
1, LED light source: 1 group (imported lamp beads)
2, LED lamp irradiation surface size: 200 * 24mm
3, UV band: 365nm
4, contact button control
5, LED light group cooling using water cooling system
6, LED light group high and low hand wheel adjustment
7, conveying materials: Teflon mesh belt
8, conveying width: 200mm
9, conveying speed: 0~5m/min
10, the entrance height: 50mm
11, power: 220Vac50HZ

功能用途

主要用途：

1,、微電子行業UVLED光固化應用。
2,、PCB行業UVLED光固化應用,。
3、醫療器械UVLED光固化應用,。
4,、光學行業-ST-LED UV光固化應用。
5,、光通信行業UVLED光固化應用,。
6、科研及院所-ST-LED UV光固化應用,。
7,、印刷UV油墨固化其他應用，紫外線身份驗證,、條碼（230-280nm）,。表面積水的殺菌（240-280nm）。鑒別和體液檢測和分析（250-405nm）,。蛋白質分析和藥物發明（270-300nm）,。醫學光照療法（300-320nm）。高分子和油墨印刷（300-365nm）,。辨?zhèn)危?75-395nm）,。表面除菌/美容除菌（390-410nm）。植物生長（275～320nm）等,。
想了解更多相關信息,，可以咨詢深圳市三昆科技有限公司，謝謝,！

The main purpose:
1. UVLED light curing application in the microelectronics industry.
2. UVLED light curing application in PCB industry.
3. Medical device UVLED light curing application.
4, optical industry - ST-LED UV light curing applications.
5. UVLED light curing application in optical communication industry.
6, research and institutes - ST-LED UV curing applications.
7, printing UV ink curing other applications, UV identification, barcode (230-280nm). Sterilization of surface area water (240-280 nm). Identification and body fluid detection and analysis (250-405 nm). Protein analysis and drug discovery (270-300 nm). Medical phototherapy (300-320nm). Polymer and ink printing (300-365nm). Discriminate (375-395nm). Surface sterilization / cosmetic sterilization (390-410 nm). Plant growth (275 ~ 320nm) and so on.
For more information, you can consult Shenzhen Sankun Technology Co., Ltd., thank you!

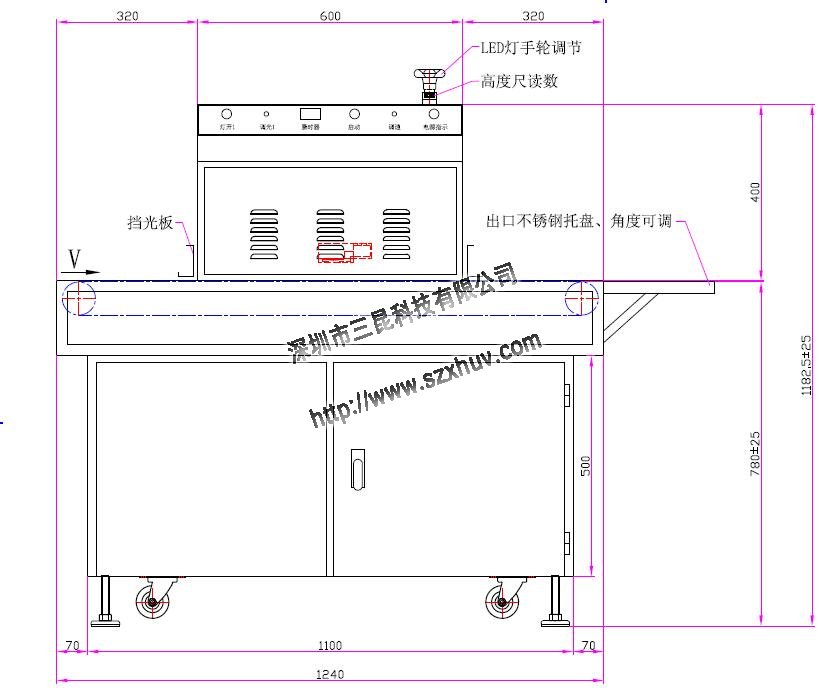

產品平面設計圖
